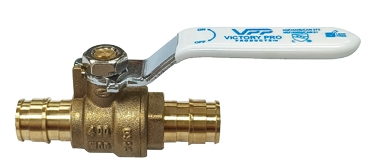

T-1960NL ½" DZR Brass Full Port PEX 400# Ball Valve
1818873
MFG #: 101-543NL
- Material: Brass
- Valve Port Opening: Full
- End Connection: Cold Expansion PEX x Cold Expansion PEX
- Nominal Size: 1/2" x 1/2"
- Specifications
- Description
- Documents
- Actuation Type: Lever Handle
- Nominal Size: 1/2 Inch x 1/2 Inch
- End Connection: Cold Expansion PEX x Cold Expansion PEX
- End to End Distance: 2.72 Inch
- Ball Material: UNS Alloy C46500 Chrome Plated Forged Brass
- Body Material: UNS Alloy C46500 Chrome Plated Forged Brass
- Stem Material: UNS Alloy C46500 Chrome Plated Forged Brass
- Seat Material: FR101 Resin PTFE
- Seal Material: EPDM Stem O-Ring
- Handle Material: ASME SA6 SA283 Grade C Zinc Plated Steel
- Port Type: Full
- Pressure Rating: 400 PSI CWP
- Inclusions/Features: Bottom Loaded Blowout Proof Stem Design, Drop Ear Drainable Configuration, Zinc Plated Steel Handle Nut, PTFE Anti-Friction Washer, DZR Forged Brass End Adapter, NBR Rubber Waste Cap Gasket, Brass Waste Cap
- Application: Commercial, Plumbing, Potable Water System
- Applicable Standard: ANSI/ASME B1.20.1, NSF/ANSI 14/61, ASTM F1960, ISO 9002
- Additional Information: Lead-Free
