  • Urinal Flush Valve with 14" x 12" Stainless Steel Cover Plate/3/4" Vacuum Breaker Tube and 3/4" Angle Stop, 1" Toilet 3/4" Urinal, NPT INLET, 0.125 GPF, Stainless Steel Cast Bronze, Rear Spud, Concealed Mount, Automatic Infrared Sensor Actuated, Self-Powered, Hydroelectric
Toto

Urinal Flush Valve with 14" x 12" Stainless Steel Cover Plate/3/4" Vacuum Breaker Tube and 3/4" Angle Stop, 1" Toilet 3/4" Urinal, NPT INLET, 0.125 GPF, Stainless Steel Cast Bronze, Rear Spud, Concealed Mount, Automatic Infrared Sensor Actuated, Self-Powered, Hydroelectric

1911617 MFG #: TEU2UA11#SS
Toto 0.125 gpf Automatic Flush Valve 1911617
  • Flow Rate: .125 gpf
  • Spud Location: Rear
  • Spud Size: 3/4"
  • ADA Compliant: Yes
  • WaterSense Labeled: Yes
  • Specifications
  • Description
  • Documents
  • Type: Self-Powered, Hydroelectric
  • Actuation Type: Automatic Infrared Sensor
  • Body Configuration: Rear Spud
  • Inlet Size: 1 Inch (Toilet), 3/4 Inch (Urinal)
  • End Connection: Threaded Inlet
  • Spud Size: 2-3/16 Inch (Toilet), 1-5/16 Inch (Urinal)
  • Body Material: Stainless Steel Cast Bronze
  • Flow Rate: 0.125 GPF
  • Mounting Type: Concealed Mount

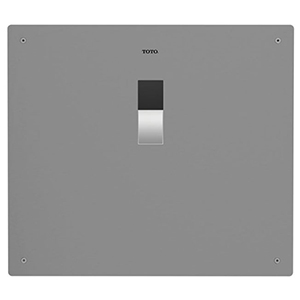

  • Inclusions/Features: Self-Adjusting Detection Range Smart Sensor, Tamperproof Screw, Neutral Rough-In and Adjustable Tail Piece Connection, Manual Flush Override, 14 Inch x 12 Inch Stainless Steel Cover Plate, 3/4 Inch Vacuum Breaker Tube, 3/4 Inch Angle Stop
  • Used On Item: Ultra High Efficiency Urinal
  • Applicable Standard: ADA, ASSE 1037, CSA B125.3, EPA, IAPMO, CUPC, IPC, NSPC, NPC Canada, CALGreen
  • Additional Information: Sensor Detection Time 6 Second; Pressure Rating 15 to 125 PSI; Temperature Rating 32 to 104 Deg F
Engineered to Require No Electricity or Routine Battery Replacement, EcoPower Technology is the Perfect Marriage of Hands-Free Operation, Low Maintenance, Easy Installation and Ecology.
