Wilkins

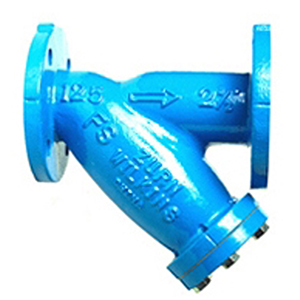

Model FSC 3" x 1 ¼" x 1 ¼" 125# Cast Iron Flanged Epoxy Coating Wye Strainer

363496 MFG #: 3-FSC
Wilkins Model FSC 3" x 1 ¼" x 1 ¼" 125# Cast Iron Flanged Epoxy Coating Wye Strainer 363496
  • Body Material: ASTM A536 Epoxy Coated Ductile Iron
  • End Connection: Flanged x Flanged
  • Size: 3"
  • Specifications
  • Description
  • Documents
  • Type: Y-Pattern
  • Nominal Size: 3 Inch
  • End Connection: Flanged x Flanged
  • End to End Distance: 10-1/2 Inch
  • Drain Connection: 1-1/4 Inch Threaded
  • Pipe Size to Vertical Dimension: 9-1/4 Inch
  • Mesh/Screen Size: 0.045 Inch Diameter (Opening)
  • Body Material: ASTM A536 Epoxy Coated Ductile Iron
  • Mesh/Screen Material: 300 Perforated Stainless Steel
  • Pressure Rating: 200 PSI WOG at 150 Deg F, 125 PSI at 450 Deg F Steam
  • Media Handled: Water
  • Inclusions/Features: ASTM A536 Ductile Iron Access Cover, Screen, Gasket, O-Ring
  • Applicable Standard: NSF/ANSI 372, IAPMO, MIL-S 16293F Type 2
  • Additional Information: Lead-Free
Y-Strainer; Type Y-Pattern; Nominal Size 3 Inch; End Connection Flanged x Flanged; End to End Distance 10-1/2 Inch; Drain Connection 1-1/4 Inch Threaded; Pipe Size to Vertical Dimension 9-1/4 Inch; Mesh/Screen Size 0.045 Inch Diameter (Opening); Body Material ASTM A536 Epoxy Coated Ductile Iron; Mesh/Screen Material 300 Perforated Stainless Steel; Pressure Rating 200 PSI WOG at 150 Deg F, 125 PSI at 450 Deg F Steam; Media Handled Water; Inclusions/Features ASTM A536 Ductile Iron Access Cover, Screen, Gasket, O-Ring; Applicable Standard NSF/ANSI 372, IAPMO, MIL-S 16293F Type 2; Lead-Free
