SharkBite

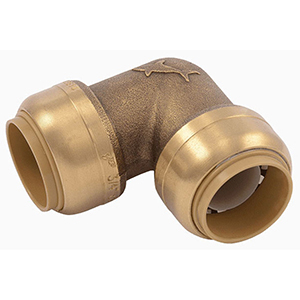

¾" Push Fit Natural DZR Brass 90 Degree Elbow Lead Free

1479903 MFG #: SHBU256LF
Sharkbite ¾" Push Fit Natural DZR Brass 90 Degree Elbow Lead Free 1479903
  • Material: DZR Brass
  • Size: 3/4" x 3/4"
  • End Connection: Push-Fit x Push-Fit
  • Fitting Type: 90 Elbow
  • Type: Domestic, Straight
  • Specifications
  • Description
  • Documents
  • Type: Domestic, Straight
  • Angle: 90 Degree
  • Size A: 3/4 Inch
  • Size B: 3/4 Inch
  • End Connection: Push-Fit x Push-Fit
  • Material: DZR Brass
  • Finish: Natural
  • Pressure Rating: 200 PSI
  • Temperature Rating: 200 Deg F
  • Application: Commercial, Potable Water Distribution, Hydronic Heating Water Distribution
  • Applicable Standard: UL 263, CSA B125.3, CAN/ULC S102.2/S101, UPC, IPC, CUPC, IAPMO, ASSE 1061, ISO/IEC 17025, ISO 6509, NSF/ANSI 14/61/372
  • Additional Information: Lead-Free; Includes EPDM O-Ring, Stainless Steel Grab Ring, Polysulfone Tube Support Liner; Used with PEX/Copper/CPVC/PE-RT/HDPE Pipe
Elbow Fitting; Type Domestic, Straight; Angle 90 Degree; Size A 3/4 Inch; Size B 3/4 Inch; End Connection Push-Fit x Push-Fit; Material DZR Brass; Finish Natural; Pressure Rating 200 PSI; Temperature Rating 200 Deg F; Application Commercial, Potable Water Distribution, Hydronic Heating Water Distribution; Applicable Standard UL 263, CSA B125.3, CAN/ULC S102.2/S101, UPC, IPC, CUPC, IAPMO, ASSE 1061, ISO/IEC 17025, ISO 6509, NSF/ANSI 14/61/372; Lead-Free; Includes EPDM O-Ring, Stainless Steel Grab Ring, Polysulfone Tube Support Liner; Used with PEX/Copper/CPVC/PE-RT/HDPE Pipe
