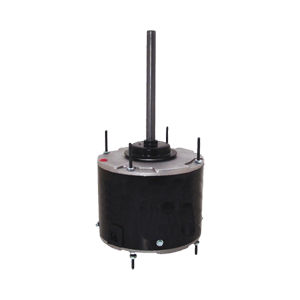

American Standard Heating & Air Conditioning

Motor; 1/2 HP, 200-230/60/1, 1100rpm,CCW, 48 Frame, Reversible, Ball Bearing, 10

1393424 MFG #: MOT08500
American Standard Heating & Air Conditioning Motor; 1/2 HP, 200-230/60/1, 1100rpm,CCW, 48 Frame, Reversible, Ball Bearing, 10 1393424
  • Horsepower: 1/2 hp
  • Motor Type: Blower Motor
  • Specifications
  • Description
  • MOTOR
  • AC
  • CONDENSER FAN
  • 230V AC
  • 3.9A LOAD CURRENT
  • 0.5HP
  • 1075RPM SPEED
  • 60HZ FREQUENCY
  • 1 PHASE
  • CCW ROTATION
  • 48 FRAME
  • PSC TECHNOLOGY
  • 60DEGC MAX TEMPERATURE
  • 1 SPEEDS
  • CAO ENCLOSURE
  • B INSULATION CLASS
  • VERTICAL SHAFT-UP MOUNT
  • AUTOMATIC PROTECTOR
  • THERMAL PROTECTOR
  • SLEEVE BEARING
  • 1 SERVICE FACTOR
  • SLINGER
  • 10UF AT 370V MOTOR CAPACITANCE
  • 0.5IN SHAFT DIAMETER
  • 2.5IN SHAFT LENGTH
  • 5.6875IN DIAMETER
  • 8.125IN HEIGHT NEMA DIMENSIONS
  • MEETS CSA
  • UL
MOTOR; 1/2 HP, 200-230/60/1, 1075 RPM, CCW, PSC, INDOOR, 48 FRAME, SLEEVE BEARINGS, 10 MFD AT 370V
