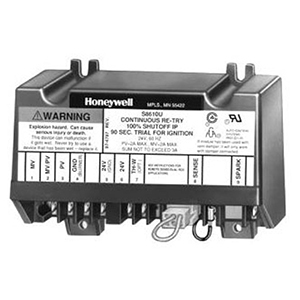

Honeywell Home S86 1/4" Inlet Universal Intermittent Pilot Module

• Type: Universal
• Fuel Type: Natural, Liquid Propane
• Flame Sense Type: 1 or 2 Rod
• Ignition Source: Internal High Voltage Spark Generator
• Ignition Sequence: Continuous Retry
• Ignition Trial Time: 15 or 90 Second
• Prepurge Time: 30 Second
• Flame Failure Response Time: 2 Second
• Valve Rating: 1 Amp (Pilot), 2 Amp (Main) at 165 Deg F, 1 Amp (Pilot), 1 Amp (Main) at 175 Deg F
• Size: 5-7/16 Inch Width x 2-5/8 Inch Depth x 3-15/16 Inch Height
• Temperature Rating: -40 to 165 Deg F
• Application: Intermittent Pilot Warm Air Furnace, Heating Appliance
• Approval: CSA
• Additional Information: Voltage Rating 24 Volt AC; Frequency Rating 60 Hertz; Includes Damper Connection with Automatic Vent Damper Plug, Spark Cable Adapter, Cross Reference, Instruction and Accessory

Intermittent Pilot Ignition Module; Type Universal; Fuel Type Natural, Liquid Propane; Flame Sense Type 1 or 2 Rod; Ignition Source Internal High Voltage Spark Generator; Ignition Sequence Continuous Retry; Ignition Trial Time 15 or 90 Second; Prepurge Time 30 Second; Flame Failure Response Time 2 Second; Valve Rating 1 Amp (Pilot), 2 Amp (Main) at 165 Deg F, 1 Amp (Pilot), 1 Amp (Main) at 175 Deg F; Size 5-7/16 Inch Width x 2-5/8 Inch Depth x 3-15/16 Inch Height; Temperature Rating -40 to 165 Deg F; Application Intermittent Pilot Warm Air Furnace, Heating Appliance; Approval CSA; Voltage Rating 24 Volt AC; Frequency Rating 60 Hertz; Includes Damper Connection with Automatic Vent Damper Plug, Spark Cable Adapter, Cross Reference, Instruction and Accessory
